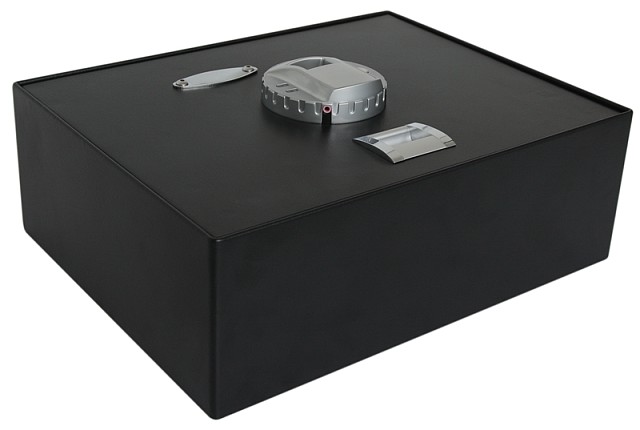

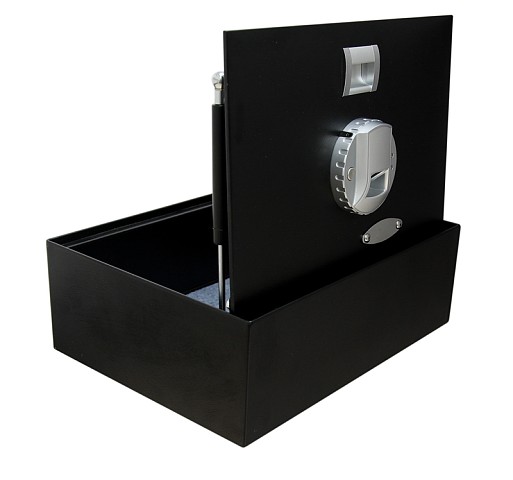

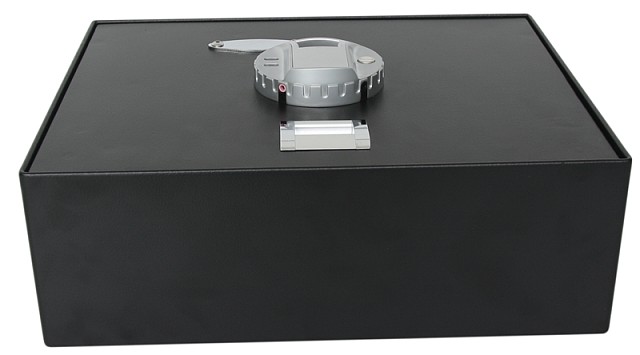

Model No. F-F1338FOD-TM Top Opening
External:   (H)128(W)375(D)290 mm
Internal:    (H)82×(W)368×(D)283  mm
Packing dimension (H)185×(W)405×(D)330 mm
Net weight  11 kg      Gross weight   12 kg
Shelf(PC)   without, Double locking bolt
Color available   Black
20'FLC(PCS) :

Product Features :
Optical Fingerprint Sensor: solid surface plated membrane 300,000 pixels colourful CMOS
Resolution: 500 dpi
Resist And Assault Ability: 4H pencil assault 1000 times in succession within the range of 20cm
Matching Time: ≤ 1second
Matching Mode: 1:N
FRR (False Rejection Rate): < 1%
FAR (False Acceptance Rate): < 0.0001%
Fingerprint Reader: 360°
Fingerprint Capacity: 30
Light Interference: out light or sunshine directly acceptance
Optical Glass: nanometer plated membrane protected surface , increasing wear resisting degree
Static consumption: <10uA
Dynamic consumption: ≤120mA
Communication Protocol: TTL or Serial (RS232)
Operating Voltage: DC 4.5-7V(4 xAA size Alkaline Batteries )
Using Environment Temperature: 5 ℃ ~ 50 ℃
Operating Humidity: 45%RH ~ 80% RH
